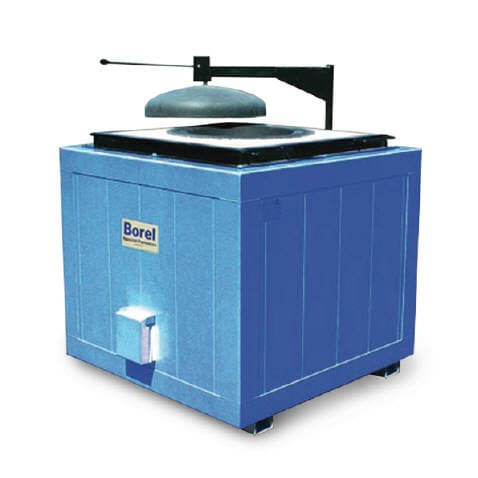

SE 1000
Salt Bath Furnaces 1000°C
Salt bath furnace for quenching up to 1000°C
Type : Salt bath furnace for quenching up to 1000°C.
Access : Access to crucible from top, manual cover closing.
Insulation : Interior in ceramic fibre and refractory bricks.
Heating : Electrical coil resistors all around the crucible, mounted on ceramic tubes.
Regulation : Thermocouple outside of crucible.
Documentation : CE marking and operating instructions.

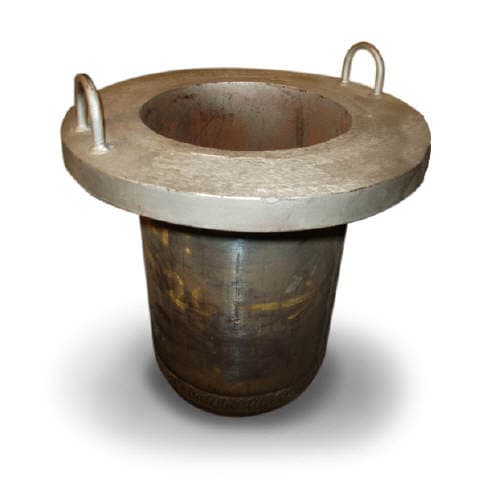

Delivered with : Without crucible, customised manufacturing.
Specifications
| Model | Item code | Volume (L) | Internal dimensions (W×H×D mm) | External dimensions (W×H×D mm) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| SE 1000-20 | G15024 | 19 | — | 900 x 800 x 900 | 14 | — |
| SE 1000-45 | G15025 | 50 | — | 950 x 800 x 950 | 21 | — |
| SE 1000-90 | G15026 | 95 | — | 1000 x 900 x 1000 | 27 | — |
| SE 1000-200 | G15027 | 148 | — | 1150 x 1050 x 1150 | 50 | — |
| SE 1000-300 | G15028 | 172 | — | 1250 x 1150 x 1250 | 60 | — |
| SE 1000-350 | G15029 | 201 | — | 1400 x 1950 x 1800 | 66 | — |
| SE 1000-500 | G15030 | 366 | — | 1600 x 2000 x 1950 | 74 | — |
| SE 1000-600 | G15031 | 407 | — | 1450 x 1400 x 1450 | 84 | — |
